Ara Şanzımanlar

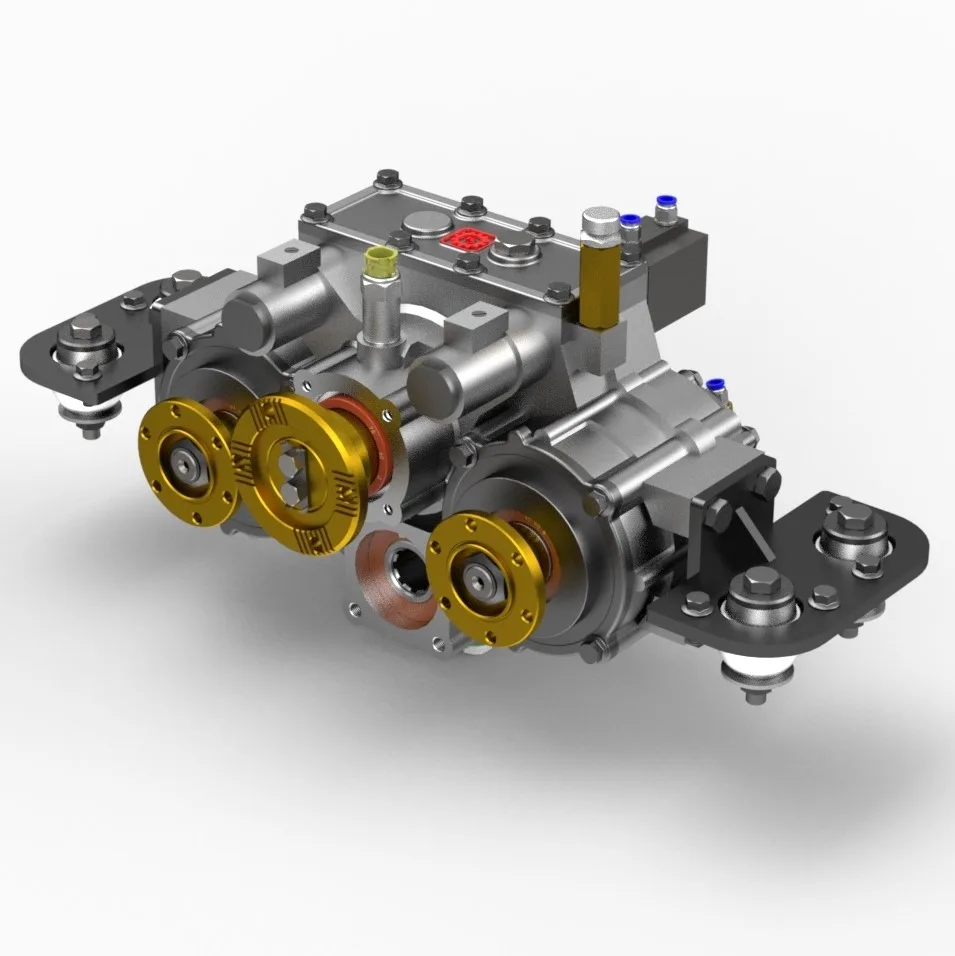

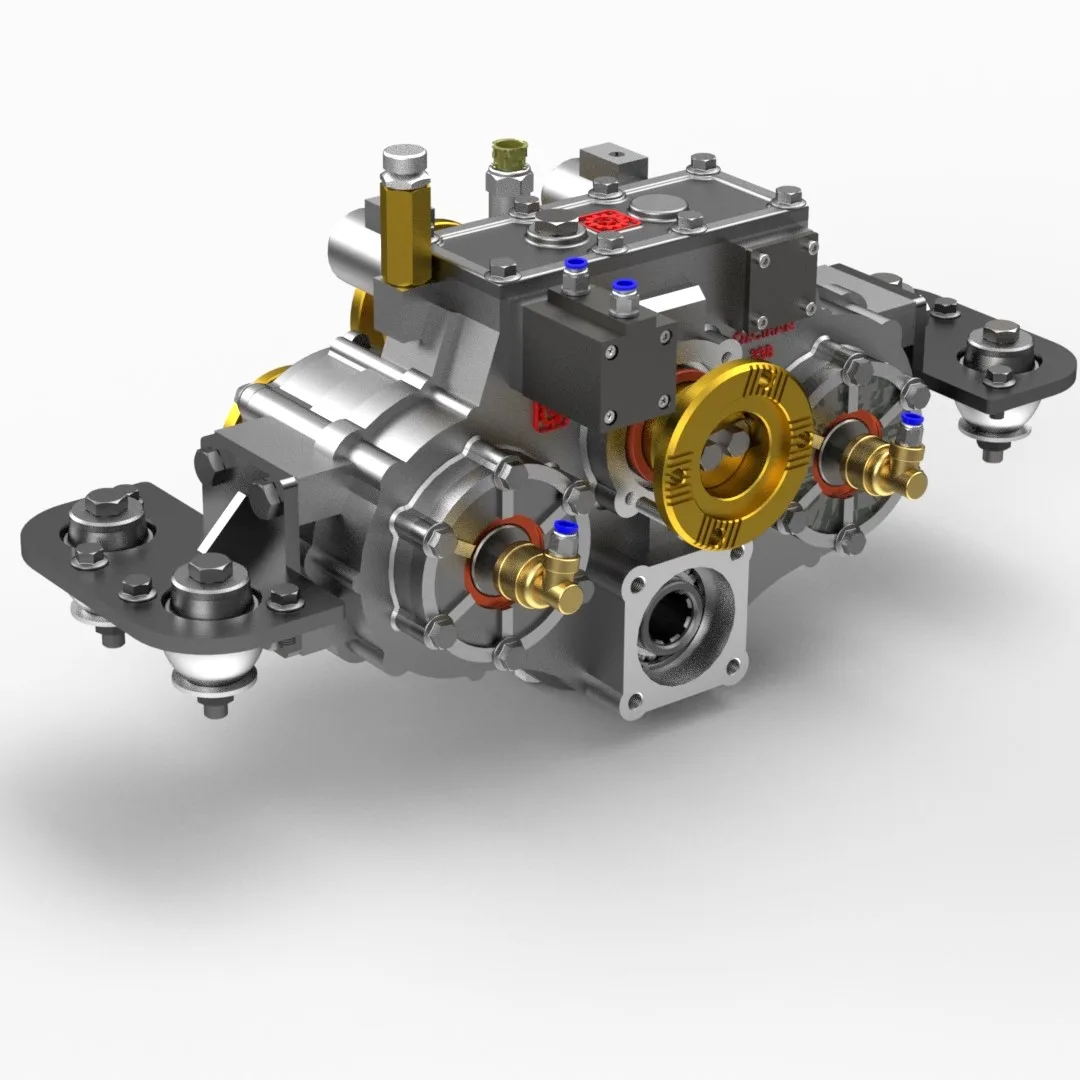

CTM 238

CTM 238

ARA ŞANZIMAN KODU/SPLIT SHAFT:

CTM 238 800

ANA SHAFT/MAIN SHAFT:

TORK/TORQUE: 800 Kgm

KAVRAMALI ÇIKIŞLAR 1000 RPM/AUXILIARY OUTPUTS:

TORK/TORQUE:70 Kgm ( 686 Nm) - GÜÇ/POWER :72 Kw - ORAN/RATIO:1,28

HİDROLİK POMPA ÇIKIŞI/OUTPUT OF HYDRAULIC

TORK/TORQUE:400 Nm - GÜÇ/POWER:35Kw - ORAN/RATIO:1,65

AZAMİ HIZ/MAX SPEED:

2800-3300 RPM

AĞIRLIK/WEIGHT:

80 Kg
