Vehicle-Mounted Equipment
Front-Mounted Road Sweeper
Product code: AUE-03
- Genişlik
- 2400 mm
- Süpürme Genişliği
- 2000 mm
- Fırça Çapı
- 255x600
- Fırça Lifleri
- 30 Adet Çelik, 30 Adet Plastik (Poliüretan)
- Süpürme Çalışma Açısı
- 25-30 Derece Sağ-Sol
- Kontrol Paneli
- Kabin İçinden Kumandalı
- Çalışma Sistemi
- Hidrolik
- Yağ Soğutucu
- 45 Litre

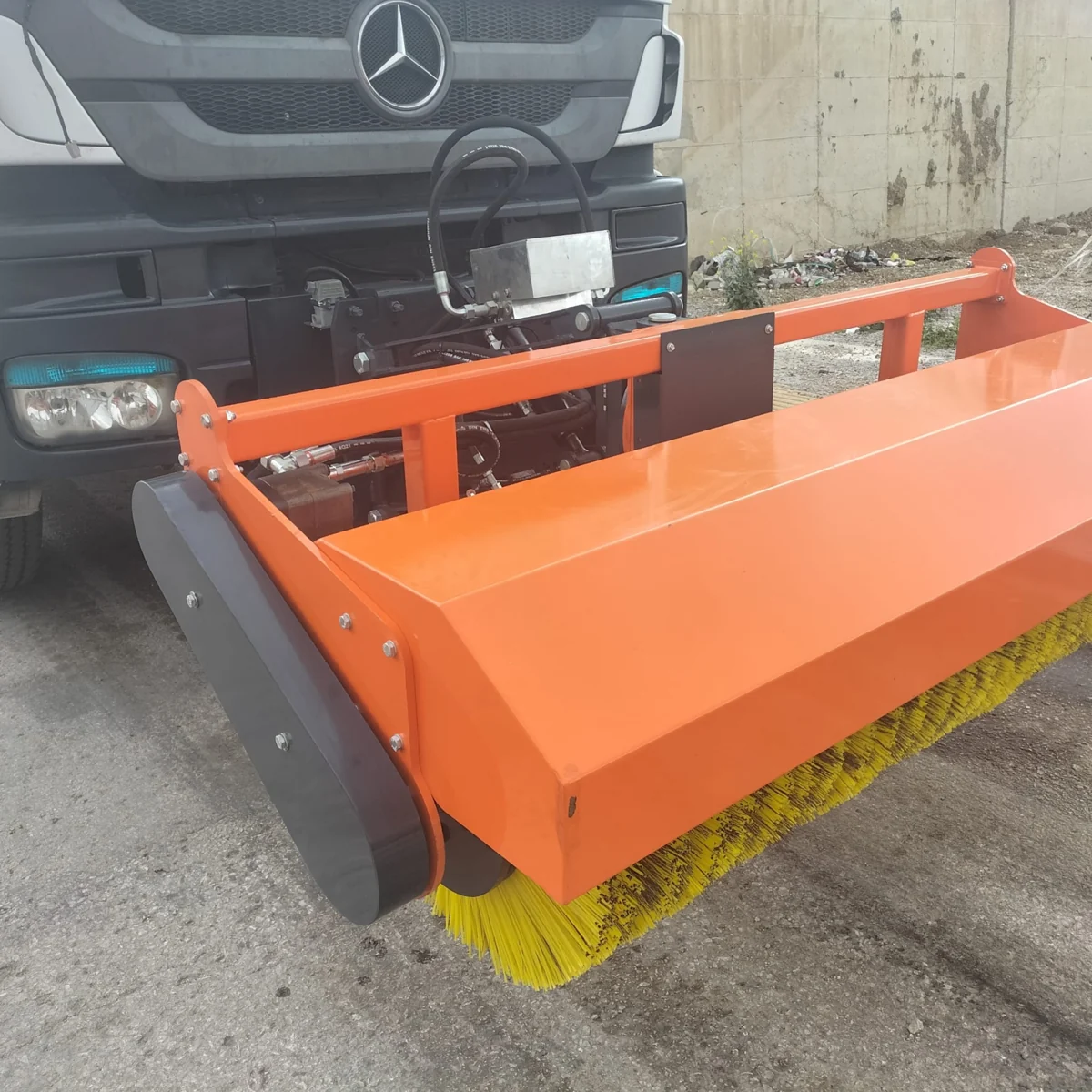

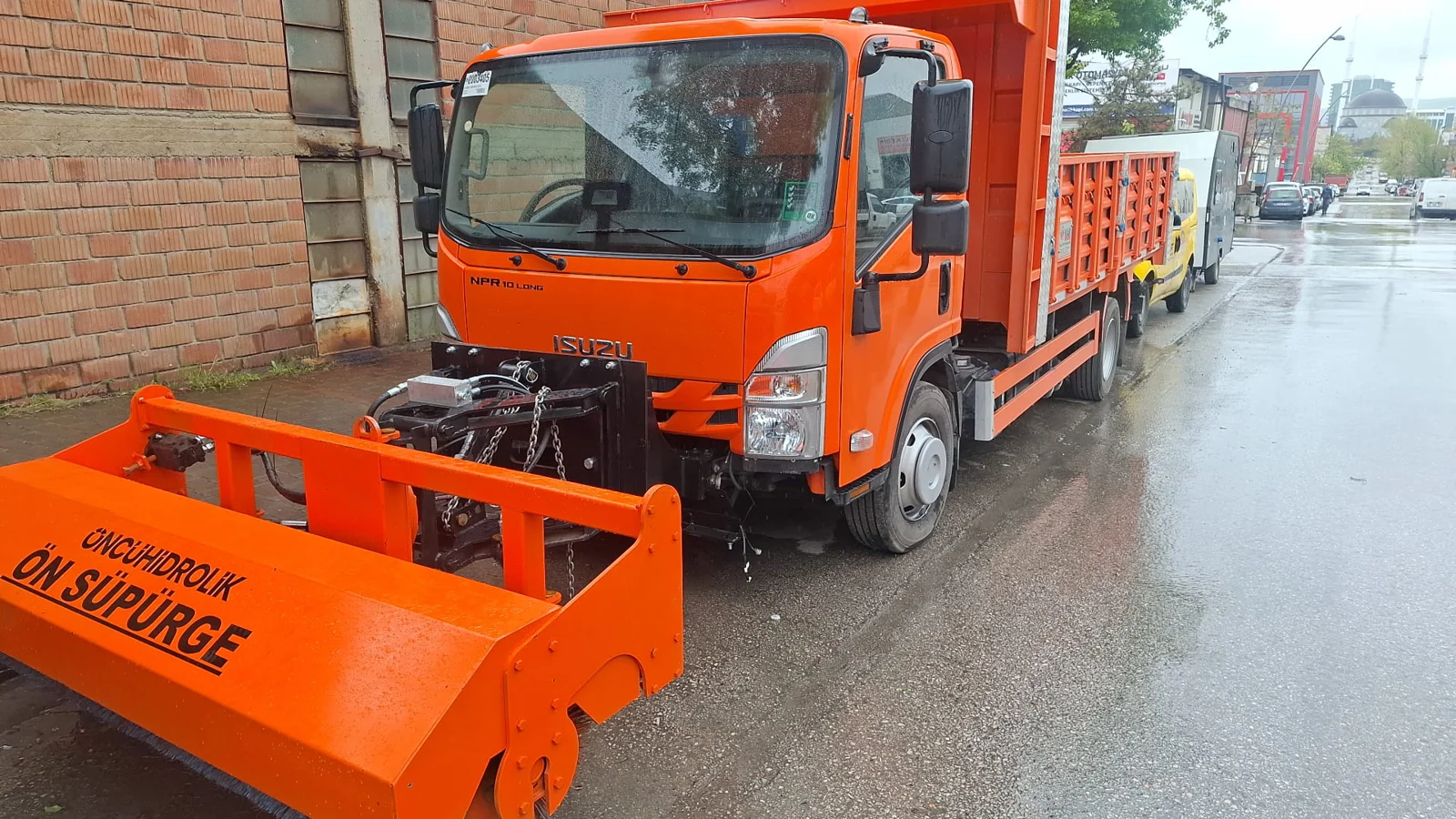

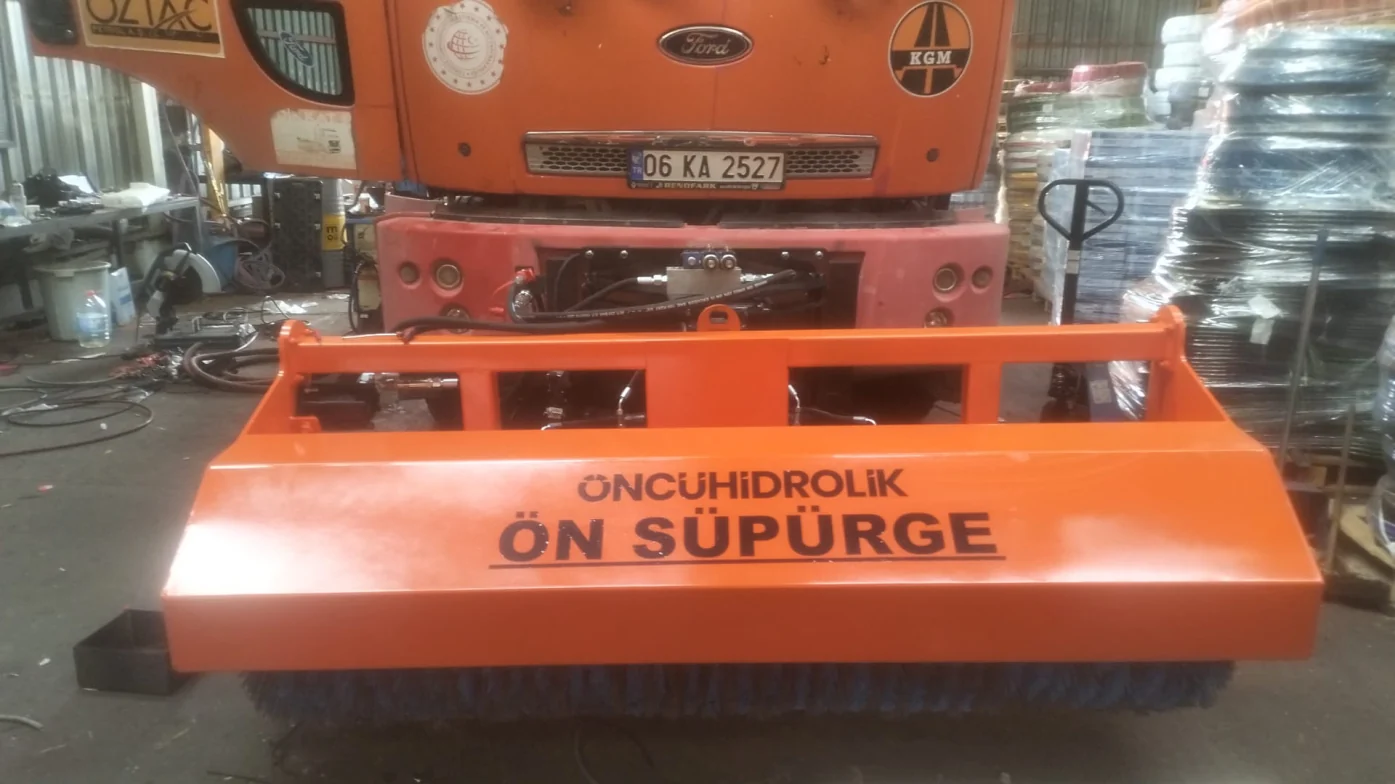

Product Images
Advantages
- Silindirler 200 atm çalışma basıncına dayanıklı ve bu basınçta sızdırmaz olacak şekilde belirtilmiştir.
- Hidrolik hortumlar en az SAE 100 R2 standardına uygundur.
- Hortumlar, araç hidrolik güç çıkış valflerine uygun çabuk değiştirme kaplinlerine sahiptir.
- Rekor, valf, kaplin ve diğer metal elemanlar paslanmaya karşı kaplanmıştır.
- Valfler, hortumlar ve borular dış etkilere maruz kalmayacak biçimde konumlandırılır veya koruyucu ile korunur.
Applications
- Municipal street and road cleaning
- Surface cleaning before asphalt paving
- Collecting loose chippings after surface dressing
- Light snow and mud clearing
- Industrial and construction sites
What is a front-mounted road sweeper?
A front-mounted road sweeper is a hydraulic attachment fitted to the front of the carrier vehicle that sweeps dust, mud, chippings and loose material off the road surface with a rotating brush. Because it works ahead of the vehicle, the operator sees the swept area directly from the cab and can steer the brush precisely.
Technical layout and control
According to the catalogue data the Öncü Hidrolik front sweeper has an overall width of 2400 mm and a sweeping width of 2000 mm. The brush combines steel and polyurethane bristles and can be angled 25–30 degrees to the right and left. The machine is controlled from inside the cab; lifting, lowering, down-pressure, left/right angling and float functions are handled by the control system.
In the hydraulic circuit the cylinders are rated for 200 atm working pressure, hoses meet at least SAE 100 R2 and quick-release couplings suit the vehicle hydraulic outlets. Metal connection parts are plated against corrosion.
Where is it used?
Typical applications are municipal street and road cleaning, surface preparation before asphalt or prime coat, collecting loose chippings after surface dressing, and cleaning construction and industrial yards. The adjustable brush angle makes it easy to direct the swept material towards the kerb.
Frequently Asked Questions
What is the sweeping width of the front sweeper?
According to the catalogue data the sweeping width is 2000 mm and the overall machine width is 2400 mm.
Can the brush angle be adjusted?
Yes. The brush can be angled 25–30 degrees to the right and left, which lets the swept material be directed to the side of the road.
What information should I share when requesting a quote for a front-mounted road sweeper?
The make and model of the carrier vehicle, the type of road and work, the daily workload and any existing hydraulic equipment on the vehicle define the configuration. Dimensions and capacities are then determined together with our team.
