Vehicle-Mounted Equipment

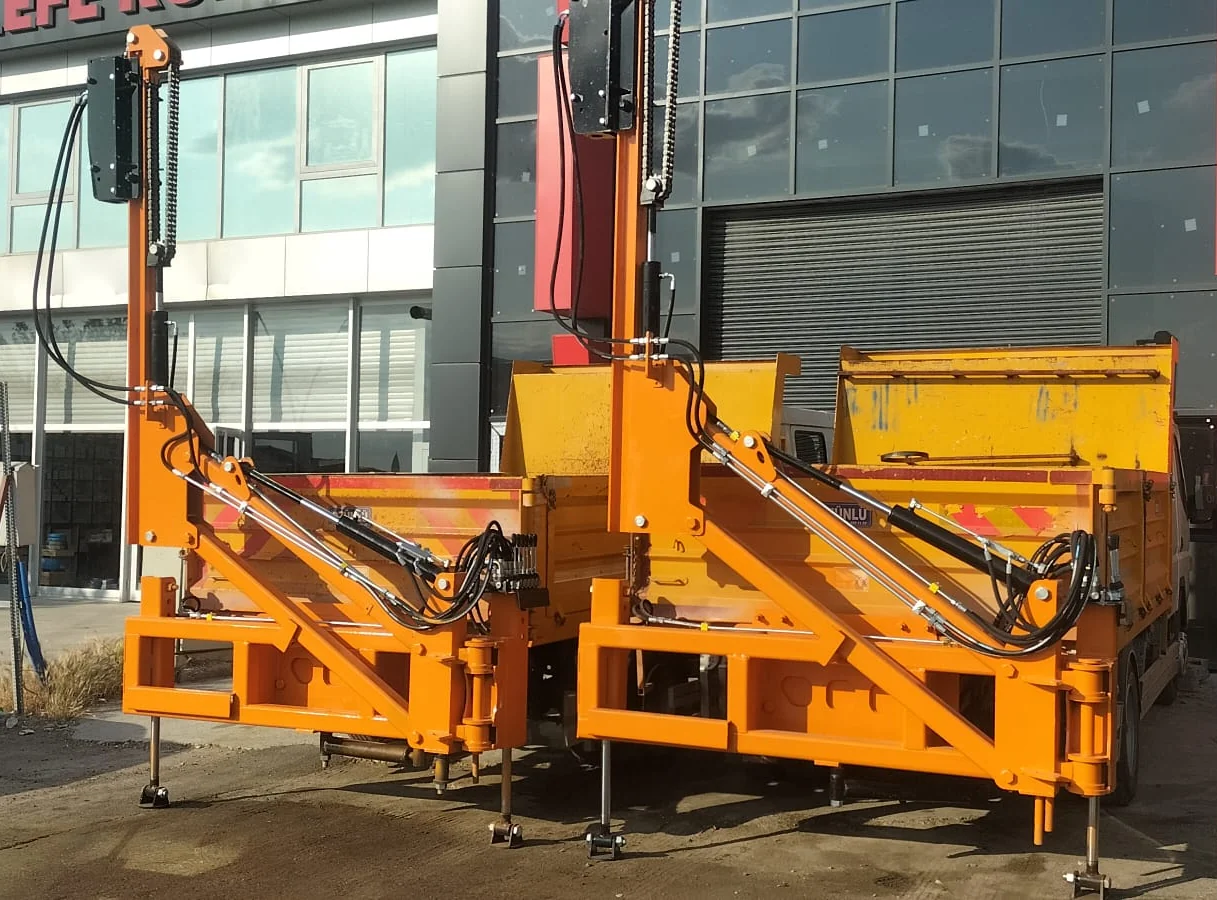

Post Driver
Product code: AUE-01
- Yükseklik
- 2600 mm - 3500 mm
- Tipi
- Hidrolik
- Vuruş Enerjisi
- 230 Joule
- Çalışma Aralığı
- 110 Kg
- Çalışma Basıncı
- 85 - 110 Bar
- Vuruş Sayısı
- 600 - 1150 Vuruş/Dk.
- Taşıyıcı Ağırlığı
- 1 - 3 Ton
- Toplam Ekipman Ağırlığı
- 800 - 900 Kg
Applications
- Guardrail post installation
- Traffic sign post driving
- Highway road safety works
- Motorway and ring road projects
- Municipal traffic signing teams
What is a post driver?
A post driver is vehicle-mounted equipment that drives guardrail, barrier and traffic sign posts into the ground by hydraulic impact. Driving the post directly into the ground without a concrete foundation or excavation lets road safety works progress far more quickly.
Technical specifications
According to the catalogue data the Öncü Hidrolik post driver works with 230 Joule impact energy and delivers 600–1150 blows per minute. Working pressure is between 85 and 110 bar. It suits posts in the 2600–3500 mm height range. Total equipment weight is 800–900 kg and it is mounted on a carrier vehicle in the 1–3 tonne class.
Being mountable on a light carrier vehicle makes it easier to work in tight spaces at the roadside and to move quickly between work points.
Its place in road safety works
Guardrail systems and traffic signs are fundamental elements of road safety. When hundreds of posts have to be driven along long routes, driving each post vertically and at a steady rate directly affects both labour time and installation quality. A post driver mechanises this work and increases the daily installation capacity of the crews.
Frequently Asked Questions
What is the impact energy of the post driver?
According to the catalogue data it delivers 600–1150 blows per minute with 230 Joule impact energy; working pressure is between 85 and 110 bar.
Which vehicle is it mounted on?
With a total equipment weight of 800–900 kg it is mounted on a carrier vehicle in the 1–3 tonne class. Contact our team to confirm the suitability of your vehicle.
What information should I share when requesting a quote for a post driver?
The make and model of the carrier vehicle, the type of road and work, the daily workload and any existing hydraulic equipment on the vehicle define the configuration. Dimensions and capacities are then determined together with our team.
